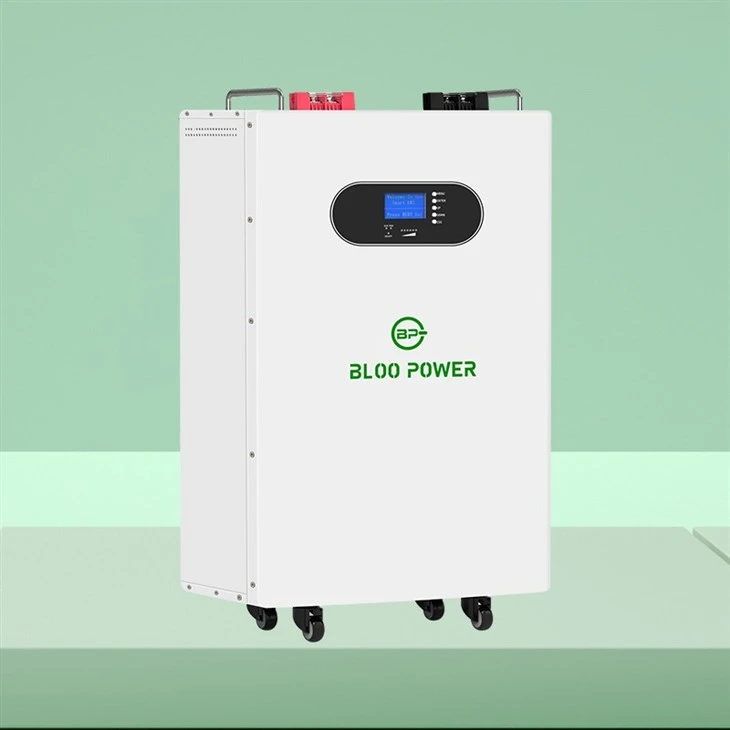

48v 200ah High Performance Hnub Ci Zog Cia LiFePo4 Roj Teeb Rau Tsev System
2. LCD digital zaub npo rau cov neeg siv saib xyuas cov xwm txheej roj teeb hauv lub sijhawm tiag tiag -
3. Peb cov roj teeb lithium muaj kev nyab xeeb thiab nws yuav tsis tawg
Peb Kev Ua Haujlwm Siab Hnub Ci Zog Cia LiFePo4 Roj Teeb 48V 200Ah yog qhov kev daws teeb meem zoo tshaj plaws rau kev txav mus los thiab txuag hluav taws xob. Lub BlooPower hnub ci lub zog hauv tsev cia roj teeb 51.2V lithium ion roj teeb tau tsim nrog cov chais thiab tuav, hnyav 105kg txhua chav nrog plaub lub log hauv qab, uas yooj yim txav los ntawm ib tus neeg laus. Nws muaj qhov zoo nkauj zoo nkauj thiab compact loj, tsuas yog muab tso rau ntawm qhov muag.
Lub roj teeb LiFePO4 muaj kev nyab xeeb dua li cov roj teeb ua kua qaub thiab yuav tsis tawg. Nws yog ib qho khoom siv zoo ib puag ncig los txo koj cov pa roj carbon hneev taw. Peb lub roj teeb lifepo4 muaj RS232, RS485, thiab CAN kev sib txuas lus sib txuas uas tau sib xws nrog 98% hom hnub ci inverters hauv khw.
Parameter
|
TSIS MUAJ |
Qauv No. |
BP-HR-7KWH |
BP-HR-10KWH | BP-HR-13KWH | BP -HR-15KWH |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Hom |
16S |
16S |
16S |
16S |
|
3 |
Rated Peev Xwm |
150 Aw |
200 Aw |
250 Aw |
300 Aw |
|
4 |
Rated Zog |
7, 68 kWh |
10.24 KWh |
PEB 12.80 kWh |
PEB 15.36 kWh |
| 5 | Voltage Ntau | 40V-58.4V | 40V-58.4V | 40V-58.4V | 40V-58.4V |
|
6 |
Lub voj voog (80% DOD) |
8000 cycles |
8000 cycles | 8000 cycles | 8000 cycles |
|
7 |
Qhov tob ntawm kev tso tawm |
80% |
80% | 80% | 80% |
|
8 |
Charge tam sim no |
20A |
40A |
40A |
40A |
|
9 |
Tshem tawm tam sim no |
20A |
40A |
40A |
40A |
|
10 |
Maximum Continuous Charge Current |
80A |
160A |
160A |
160A |
|
11 |
Maximum Continuous Discharge Current |
100A |
200A |
200A |
200A |
|
12 |
Qhov hnyav |
85kg ua |
105kg ua |
125kg ib |
155kg ua |
|
13 |
Qhov Loj L * W * D (mm) |
L500 * W230 * H630mm |
L500 * W250 * H650mm |
L520 * W250 * H700mm |
L520 * W250 * H750mm |
|
14 |
Kev ua haujlwm kub |
Them nqi: -10℃~ 55 degree, Tawm: 0 ~ 55 degree |
|||
| 15 | Cia Kub | Khaws ntawm -10℃rau 55 degree | |||
| 16 | Hom Cell | LiFePo4 Lithium ion Phosphates roj teeb | |||
| 17 | Kev tu | Kev kho dawb | |||
| 18 | Kev sib haum xeeb | Tau tshaj nrog rau feem ntau ntawm cov uas muaj tawm -gird/hybird inverters thiab them controllers | |||
| 19 | BMS | Intelligent roj teeb tswj system | |||
| 20 | Maximum Parallel/Moduler Connection | 16 pcs | |||
Khoom nta
1. Nrog Roller tsim yog yooj yim rau nruab thiab nqa.
2. Tau tshaj feem ntau ntawm daim phiaj tawm lossis hybrid inverter hauv khw
3. BMS saib xyuas cov roj teeb raws li txoj cai thiab xyuas los ntawm lub vijtsam LCD
Lub roj teeb no yuav ua li cas thiaj li txhim kho lub hnub ci zog rau tus kheej-Kev siv thiab daim phiaj tiv thaiv?
Kev koom ua ke ntawm 48V 200Ah Kev Ua Haujlwm Siab Hnub Ci Zog Cia LiFePo4 Roj Teeb Rau Lub Tsev System nrog PV arrays ua rau nws tus kheej siab -siv tus nqi ntawm 70-95%. Lub hnub ci ntau dhau tsub lub roj teeb thaum nruab hnub, ua kom lub zog tseem ceeb thaum lub sij hawm ncov lossis hluav taws xob. Round-kev ua tau zoo ntawm 90-98% txo qis zog poob piv rau cov txheej txheem ua kua qaub-txheej txheem.
Hauv cheeb tsam nrog Sijhawm - ntawm-Siv (TOU) cov nqi se, cov roj teeb no pab txhawb kev hloov pauv, uas yuav txo tau cov nqi hluav taws xob los ntawm $800-$1,500 ib xyoos ib zaug rau cov tsev neeg nruab nrab. Thaum muaj kev cuam tshuam hauv kab sib chaws, lawv xa cov thaub qab seamless rau cov circuits tseem ceeb.
Nqe Advantage
Peb tsis tuaj yeem cog lus tias peb tuaj yeem muab tus nqi qis tshaj rau koj, tab sis peb tuaj yeem cog lus tias peb tuaj yeem muab tus nqi zoo tshaj rau koj, uas txhais tau tias koj tuaj yeem tau txais cov khoom zoo tshaj plaws ntawm tus nqi tsim nyog. Peb yuav tsis txi cov khoom zoo kom nyiam cov neeg siv khoom ntawm tus nqi qis, Ua ib qho - tawm kev lag luam tsis yog peb lub hom phiaj. Peb cia siab tias yuav txhawb nqa peb cov neeg siv khoom hauv kev nthuav dav lawv cov lag luam, peb ib txwm paub cov neeg siv khoom kev vam meej yog peb qhov tseem ceeb.
Peb muaj ob hom roj teeb rau cov menyuam, thiab peb txais OEM / ODM cov kev pabcuam
Khoom tsim nyog
Nruab
Ntim
Hais txog peb
FAQ
Q: Koj puas tuaj yeem qhia rau kuv paub ntau hom roj teeb uas siv rau hauv lub zog cia?
A: Cov roj teeb lub zog hauv tsev tuaj yeem muab faib ua lithium- roj teeb ion, lead-acid roj teeb, nickel-cadmium roj teeb, thiab lwm yam. Lub lithium- ion roj teeb uas peb siv tau dhau los ua hom khoom siv hluav taws xob hauv tsev ntau tshaj plaws ntawm kev ua lag luam vim nws lub zog ceev ceev thiab qis.
Q:Thaum twg kuv tuaj yeem cia siab tias yuav tau txais cov lus hais?
A: Peb feem ntau teb cov lus nug nrog cov lus hais hauv 24 teev. Yog tias koj xav tau cov lus teb sai dua, thov qhia rau peb paub thiab peb yuav ua qhov tseem ceeb rau koj qhov kev thov.
Q: Kuv tau teeb tsa lub hnub ci photovoltaic hauv kuv lub tsev thiab kuv tab tom nrhiav ntxiv lub zog cia roj teeb. Koj puas muaj lus pom zoo?
A: Peb cov engineers muaj los muab cov lus qhia tshaj lij ntawm qhov xwm txheej ntawm tes. Txhawm rau tso qhov kev txiav txim, thov hu rau ib tus ntawm peb cov neeg muag khoom thiab muab cov ntsiab lus meej ntawm koj cov kev xav tau. Qhov no yuav tso cai rau peb xa ib qho kev qhia rau koj tam sim ntawd.
