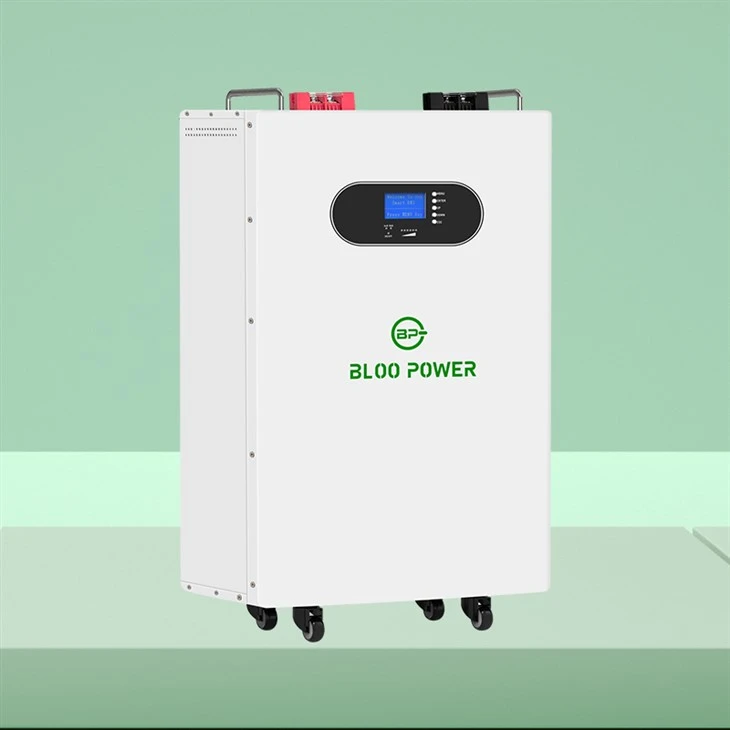

Sab saum toj Muag Khoom LiFePo4 Roj teeb 48v Rau System
2. Parallel Installation tso cai: txog 16 teev
3. Ua ke ib qho ntse BMS ua kom muaj kev nyab xeeb
Txhawm rau xaiv tus nqi siab heev -}}}}}}}} Lub thawv yooj yim dua li cov roj teeb nrog chais yog ib qho zoo tshaj plaws xaiv. Cov tsos zoo nkauj nrog LCD Screen tsim, nws tuaj yeem nyob twj ywm zoo li txhua qhov chaw uas koj tso nws. Qhov kev muag khoom sab saum toj lifepo4 roj teeb 48v rau cov chaw nyob yuav tsum tsis muaj kev saib xyuas. Txheej txheem tswj hwm roj teeb hluav taws xob siab yuav sib npaug thiab saib xyuas lub roj teeb thaum ua haujlwm, ua kom muaj hluav taws xob, cua sov, them nyiaj thiab tso tawm kom zoo.
Nrog kev pabcuam customization, koj tuaj yeem tsim cov xim, qhov hluav taws xob, tus IP theem, lub peev xwm, thiab lwm yam. Thaum nws los txog rau ntau lub peev xwm roj teeb cia khoom siv, tsuas txuas tib yam khoom hauv parallel (max mus txog rau 16pcs). Siv cov khoom zoo nkauj wholesale me me hluav taws xob cia cov roj teeb kom lub neej zoo dua.
Chaw ua uas tsis tau haus
|
Tsis muaj |
Qauv No. |
BP - hr-7kWh |
BP - hr-10k li cas | BP - hr-13kWh | BP - hr-15k li cas |
|
1 |
Cov Ntsuas Hluav Taws Xob |
51.2V |
51.2V |
51.2V |
51.2V |
|
2 |
Kev Sib Koom Tes Cell |
16S |
16S |
16S |
16S |
|
3 |
Kev Muaj Peev Xwm |
70 |
200ah |
25Thaa |
300ah |
|
4 |
Rated lub zog |
7.68KWH |
10.24kWh |
12.80KWH |
15.36kWhwh |
| 5 | Muaj ntau ntau | 40V-58.4V | 40V-58.4V | 40V-58.4V | 40V-58.4V |
|
6 |
Cycles (80% DOD) |
6500 phaum |
6500 phaum | 6500 phaum | 6500 phaum |
|
7 |
Qhov tob ntawm tso tawm |
80% |
80% | 80% | 80% |
|
8 |
Them Nqi Tam Sim No |
20A |
40A |
40A |
40A |
|
9 |
Tso Tawm Tam Sim No |
20A |
40A |
40A |
40A |
|
10 |
Nruam siab tshaj plaws them tam sim no |
80A |
160A |
160A |
160A |
|
11 |
Siab Tshaj Tawm Tawm Tam Sim No |
100A |
200A |
200A |
200A |
|
12 |
Qho hnyav |
85kg |
105Kg |
125Kg |
155kg |
|
13 |
Dimension l * w * d (hli) |
L500 * W230 * H630mm |
L500 * W250 * H650mm |
L520 * W250 * H700mm |
L520 * W250 * H750mm |
|
14 |
Kev ntsuas kub |
Tus nqi: -10℃~ 55 degree, tso tawm: 0 ~ 55 degree |
|||
| 15 | Cia kub | Khaws cia ntawm -10℃mus rau 55 degree | |||
| 16 | Hom xov tooj | LIFEPO4 lithium ion phosphates roj teeb | |||
| 17 | Kho | Tu Free | |||
| 18 | Kev sib haum | Tau tshaj nrog feem ntau ntawm cov muaj tawm ntawm - gird / hybird inverers thiab cov controllers | |||
| 19 | Bms | Cov Roj Teeb Ntse Siv Txiaj Ntsig | |||
| 20 | Ntau tshaj plaws thaum sib txuas / moduler kev sib txuas | 16pcs | |||
Khoom nta
1. Loj LCD zaub qhia cov ntaub ntawv ntawm lub roj teeb
2. Txog 6,500 zaug lub voj voog nrog 10 xyoo warranty
3.Cov kev sib txawv ntawm cov zog sib txawv
Peb muaj ob hom roj teeb rau cov menyuam, thiab peb txais OEM / ODM cov kev pabcuam
Cov Khoom Tsim Kho
Muab cia
Ntim
Txog Peb
Cov FAQ
Q: Puas yog tus nqi roj teeb tsim nyog?
A: Yog, peb muab tus nqi sib tw rau peb cov roj teeb los ntawm kev txiav txim siab ua qauv thiab kom muaj nuj nqis rau peb cov neeg siv khoom.
Q:Cov roj teeb tau los tiv thaiv lub roj teeb thaum lub sijhawm thauj?
A: Yog, peb muab kev tiv thaiv kev tiv thaiv zoo thaum ua kom muaj teeb meem kev nyab xeeb thiab kev ntseeg tau ntawm cov roj teeb.
Q: Puas muaj cov yam ntxwv rau kev them nyiaj txiag hauv cov roj teeb?
A: Yog, qee cov roj teeb tau nruab nrog kev them nyiaj tsis siv neeg. Qhov no tso cai rau lub roj teeb kom rov qab ua nws tus kheej thaum nws lub zog tau khiav qis, ua kom siv tau txuas ntxiv.
