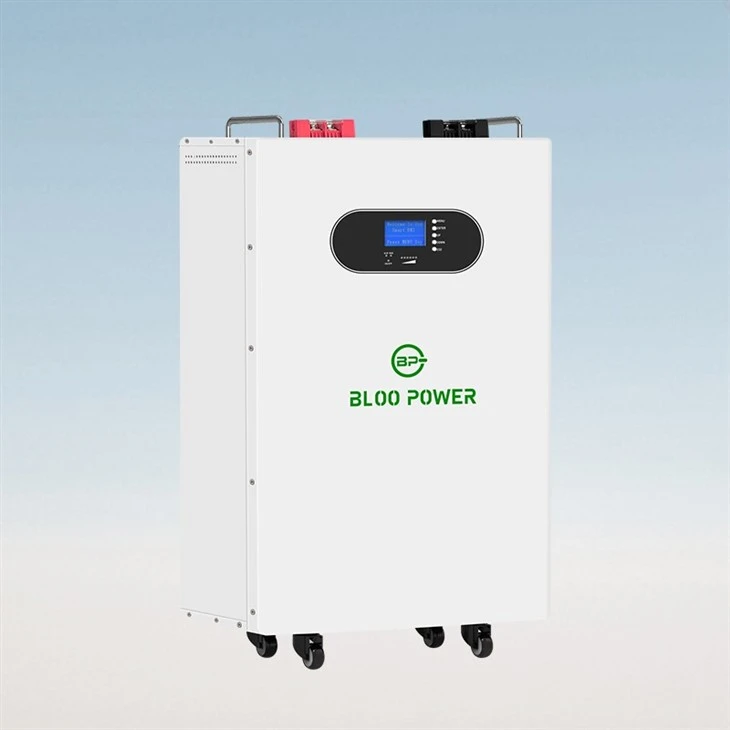

Kub Muag 51.2V LiFePo4 Lithium Roj Teeb Nrog Cov Qauv Tsim
2. Kev tswj hwm cov roj teeb muaj ntau yam kev tiv thaiv
3. Txhua pob roj teeb muaj 16 daim ib pawg lithium hlau phosphate hlwb
Tsiv ib lub neej life 4 10 kwher solar roj teeb cia, tab sis nrog plaub lub log, koj tuaj yeem tso nws txhua qhov chaw uas koj xav tau kev siv zog tsawg dua. Lub ntsej muag zoo nkauj siv cov plhaub hlau zoo uas tiv thaiv lub puab lub ntsej muag sab hauv thiab cov kab mob BMS thiab zawm. Lub hnub ci no lub zog cia li casife4 Roj teeb 48V 200ah yog sib xws nrog ntau hom nto moo hom 'Inverers, khaws cia lub zog ntawm PV, generator, thiab kab sib chaws. Txhua lub roj teeb muaj Rs485, Rs232, thiab muaj peev xwm sib txuas lus sib cuam tshuam rau kev hloov pauv tau thiab ua kom haum.
Qhov kub muag 51,2V LIFEPO4 lithium roj teeb nrog kev tsim tshwj xeeb tuaj yeem nruab rau sab hauv tsev thiab sab nraud vim yog IP65 tsim kev xaiv. Nws yog kev txij nkawm - dawb thiab cov neeg siv dawb thiab cov neeg siv- tus phooj ywg ntaus ntawv, lub zog ua kom muaj zog.
Chaw ua uas tsis tau haus
|
Tsis muaj |
Qauv No. |
BP - hr-7kWh |
BP - hr-10k li cas | BP - hr-13kWh | BP - hr-15k li cas |
|
1 |
Cov Ntsuas Hluav Taws Xob |
51.2V |
51.2V |
51.2V |
51.2V |
|
2 |
Kev Sib Koom Tes Cell |
16S |
16S |
16S |
16S |
|
3 |
Kev Muaj Peev Xwm |
70 |
200ah |
25Thaa |
300ah |
|
4 |
Rated lub zog |
7.68KWH |
10.24kWh |
12.80KWH |
15.36kWhwh |
| 5 | Muaj ntau ntau | 40V-58.4V | 40V-58.4V | 40V-58.4V | 40V-58.4V |
|
6 |
Cycles (80% DOD) |
6500 phaum |
6500 phaum | 6500 phaum | 6500 phaum |
|
7 |
Qhov tob ntawm tso tawm |
80% |
80% | 80% | 80% |
|
8 |
Them Nqi Tam Sim No |
20A |
40A |
40A |
40A |
|
9 |
Tso Tawm Tam Sim No |
20A |
40A |
40A |
40A |
|
10 |
Nruam siab tshaj plaws them tam sim no |
80A |
160A |
160A |
160A |
|
11 |
Siab Tshaj Tawm Tawm Tam Sim No |
100A |
200A |
200A |
200A |
|
12 |
Qho hnyav |
85kg |
105Kg |
125Kg |
155kg |
|
13 |
Dimension l * w * d (hli) |
L500 * W230 * H630mm |
L500 * W250 * H650mm |
L520 * W250 * H700mm |
L520 * W250 * H750mm |
|
14 |
Kev ntsuas kub |
Tus nqi: -10℃~ 55 degree, tso tawm: 0 ~ 55 degree |
|||
| 15 | Cia kub | Khaws cia ntawm -10℃mus rau 55 degree | |||
| 16 | Hom xov tooj | LIFEPO4 lithium ion phosphates roj teeb | |||
| 17 | Kho | Tu Free | |||
| 18 | Kev sib haum | Tau tshaj nrog feem ntau ntawm cov muaj tawm ntawm - gird / hybird inverers thiab cov controllers | |||
| 19 | Bms | Cov Roj Teeb Ntse Siv Txiaj Ntsig | |||
| 20 | Ntau tshaj plaws thaum sib txuas / moduler kev sib txuas | 16pcs | |||
Khoom nta
1. Ntau qhov kev sib txuas lus sib txuas lus, zoo li RS485, Rs232, thiab muaj peev xwm
2. Menyuam tsim, txav mus rau txhua qhov yooj yim
3. Ib puag ncig tus phooj ywg
Peb muaj ob hom roj teeb rau cov menyuam, thiab peb txais OEM / ODM cov kev pabcuam
Cov Khoom Tsim Kho
Muab cia
Ntim
Txog Peb
Cov FAQ
Q: Lub neej yog lifepo4 roj teeb life4 li cas?
A: LiifePo4 roj teeb muaj lub neej ntawm ntau dua 6500 txog ntawm 80% qhov tob ntawm paug. Nrog them txhua hnub thiab rho tawm, cov roj teeb no tuaj yeem nyob ntev dua 15 xyoos.
Q:Puas yog nws muaj peev xwm thov cov qauv rau kev sim ua ntej kev xaj khoom?
A: Yog, cov qauv xaj tau txais, txawm li cas los xij, cov qhua tuaj noj yuav tau them tus nqi qauv thiab cov nqi thauj khoom.
Q: Puas yog siv tau siv LIFEPO4 roj teeb?
A: LiifePo4 roj teeb yog paub rau lawv cov kav ntev thiab kev nyab xeeb, ua rau lawv tsim nyog rau siv ntau lub tsheb thiab yachts. Lub tsev ua -}} nyob rau hauv kev nyab xeeb nta, tiv thaiv qhov kub thiab txias, tiv thaiv overheating kub piv uas tej zaum yuav muaj hluav taws xob.
