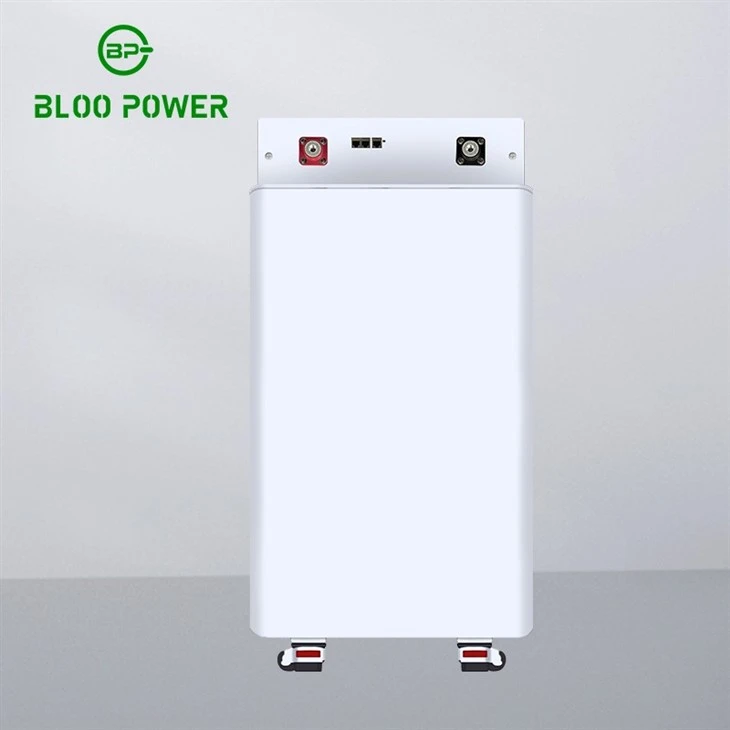

Durable 10kwh Tsev Zog Cia Cov Menyuam Roj Teeb Pob
2.16cps A-theem 3.2V lithium-ion cell hauv series
3. Yooj yim nrog 4 lub log hauv qab
Yog tias koj tab tom nrhiav lub zog cia roj teeb rau lub tsev thaub qab, peb xav kom 10KWh Cov Menyuam Lithium ion cia roj teeb rau hnub ci zog.
Los ntawm sab nraud, nws tau tsim nrog 4 lub log kom txav tau yooj yim rau cov qauv hnyav. Qhov zoo nkauj zoo nkauj nrog qhov chaw zoo siab rau cov neeg siv thaum muab tso rau hauv tsev, LCD qhia cov ntaub ntawv roj teeb txhua lub sijhawm, tso cai rau koj siv lub roj teeb yam tsis muaj kev txhawj xeeb.
Los ntawm sab hauv, cov qauv zoo sib xyaw ua ke nrog BMS ntse thiab 16 daim ntawv hwm cov hlwb hauv series, uas muab kev nyab xeeb thiab lub neej ntev.
Parameter
|
TSIS MUAJ |
Qauv No. |
BP-HR-10KWH |
BP-HR-14KWH |
BP-HR-15KWH |
|
1 |
Rated Voltage |
51.2V |
51.2V |
51.2V |
|
2 |
Cell Combination Hom |
16S |
16S |
16S |
|
3 |
Rated Peev Xwm |
200 Aw |
280 Aw |
300 Aw |
|
4 |
Rated Zog |
10.24 KWh |
14.336 KWh |
PEB 15.36 kWh |
| 5 | Voltage Ntau | 40V-58.4V | 40V-58.4V | 40V-58.4V |
|
6 |
Lub voj voog (80% DOD) |
6500 cycles |
6500 cycles | 6500 cycles |
|
7 |
Qhov tob ntawm kev tso tawm |
80% |
80% | 80% |
|
8 |
Charge tam sim no |
40A |
40A |
40A |
|
9 |
Tshem tawm tam sim no |
40A |
40A |
40A |
|
10 |
Maximum Continuous Charge Current |
160A |
160A |
160A |
|
11 |
Maximum Continuous Discharge Current |
200A |
200A |
200A |
|
12 |
Qhov hnyav |
83kg ua |
120 kg |
12 4kg |
|
13 |
Qhov Loj L * W * D (mm) |
L415 * W240 * H600mm |
L415 * W240 * H885mm |
L415 * W240 * H885mm |
|
14 |
Hom roj teeb |
Roller Roj teeb |
||
|
15 |
Kev ua haujlwm kub |
Charge: {{0}} degree ~ 55 degree, Tawm: 0 ~ 55 degree |
||
| 16 | Cia kub | Khaws ntawm -10 degree rau 55 degree | ||
| 17 | Hom Cell | LiFePo4 Lithium ion Phosphates roj teeb | ||
| 18 | Kev tu | Kev kho dawb | ||
| 19 | Kev sib haum xeeb | Tau tshaj nrog rau feem ntau ntawm muaj off-gird / hybird inverters thiab cov tswj them nqi | ||
| 20 | BMS | Intelligent roj teeb tswj system | ||
| 21 | Maximum Parallel/Moduler Connection | 16 pcs | ||
Khoom nta
1. Parallel txuas ntxiv kom muaj peev xwm ntxiv
2. txuas nyob rau hauv parallel (max mus rau 16pcs) kom nthuav lub zog muaj peev xwm
3. Khaws tag nrho 10KWh hluav taws xob ua tus thaub qab
4. LCD tsim kom yooj yim xyuas cov roj teeb raws li txoj cai
Peb lub Hoobkas muaj ntau tshaj li 15 xyoo ntawm kev paub hauv kev tsim cov roj teeb lithium thiab pab pawg R & D muaj zog. Cov khoom siv hluav taws xob hauv tsev, lub zog siv hluav taws xob, cov khoom siv hluav taws xob ua lag luam, thiab cov roj teeb lithium tuaj yeem hloov kho.
Khoom tsim nyog
Nruab
Ntim
Hais txog peb
FAQ
Q: Kuv tuaj yeem tau txais daim ntawv teev nqi rau koj cov khoom li cas?
A: Rau cov ncauj lus kom ntxaws nqe, thov muab peb cov khoom koj nyiam thiab ntau, peb yuav rov qab rau koj sai li sai tau nrog cov ntaub ntawv thov.
Q: Txoj kev xa khoom rau lub roj teeb yog dab tsi?
A: Feem ntau, cov roj teeb raug xa los ntawm huab cua lossis dej hiav txwv.
Q: Peb puas tuaj yeem ua koj tus neeg sawv cev?
A: Tau kawg, peb txais tos koj los ua peb tus neeg sawv cev.
