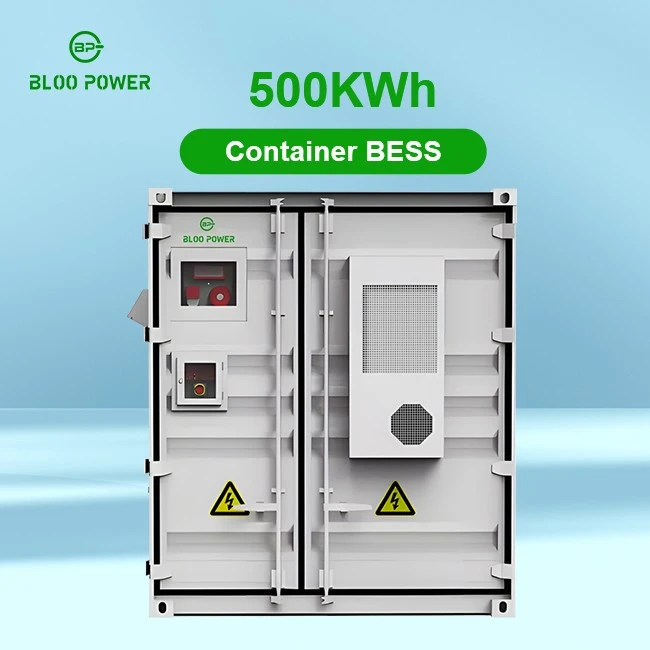

Kev Lag Luam Kev Lag Luam Siv 500KWh Roj Teeb Rau Lub Zog Cia Ib Qib LFP Roj Teeb Cell
2. Them thiab tso tawm tus nqi ntawm 0.5C lossis 1C
500kwh roj teeb rau lub zog cia muag tau nce vim qhov kev xav tau nthuav dav ntawm kev cia rau kev lag luam thiab kev lag luam. Hom 51.2V yog lub zog siab tshaj 48 v 500kwh roj teeb rau lub zog cia thiab muaj 16-cov roj teeb ntawm tes, cov qauv tsim qauv tso cai rau cov qauv tsim qauv, thiab nrog pab pawg txhim kho, koj tuaj yeem txaus siab rau BESS system. nrog kev thaj yeeb ntawm lub siab.
Bloo Power muaj peev xwm dav ntawm 50KWh txog 1000KWh, txhua yam tuaj yeem sib xws nrog ntau hom PCS lossis inverters. Nrog rau CE, FCC, UN38.3, thiab MSDS ntawv pov thawj, peb tuaj yeem pab cov neeg siv khoom thoob ntiaj teb.
Parameter
|
Qhov System Parameters |
||
|
Rated AC zog |
250KW/500KW TSI | 500KW/1000KW TSI |
| Rated AC voltage |
400V |
|
| Rated AC Tam sim no |
360A/720A |
720A/720A*2 |
| THD | <3%(Linear load) | |
| PF Adjustable Range | -1(ua) ~ +1(lagging) | |
|
Roj teeb Cell Specification |
3.2V / 120Ah; 3.2V / 280Ah |
|
| Roj teeb Cell voj voog Lub neej |
>6000 cycls@0.5C, 25 degree |
|
|
Muaj Rated Peev Xwm |
500 KWh/1000 KWh | 500 KWh/1000 KWh |
|
Hom |
Modular, High efficiency peb theem | |
|
Kev tiv thaiv |
Tshaj kub, qis kub them, tshaj tam sim no, luv luv Circuit Court, dhau voltage, nyob rau hauv voltage, DC tsheb npav tiv thaiv, tec. |
|
| Kev sib txuas hom | Peb theem peb xaim / peb theem plaub hlau | |
| Kev rho tawm Transformer | Nruab (yeem) | |
| Ua hauj lwm hom | Daim phiaj-tied ncov shaving / off-grid fais fab mov lav | |
| General Parameters | ||
| Qhov Loj (W * D * H) | 6058 * 2438 * 2896 hli | 12196 * 2438 * 2896 hli |
| Qhov hnyav | 18 ton | 35 ton |
| IP Qib | IP55 | |
| Ua haujlwm kub | -25℃ ~ 60℃(Derating>45 degree) | |
| txheeb ze humidity | 0 ~ 95% (tsis-condensing) | |
| Qhov siab | 3000m(>3,000m (Qhov siab) | |
| Hluav taws kub Extinguishing System | FM200 yeeb nkab tua hluav taws | |
| Txias System | Cua txias / kua txias | |
| Kev sib txuas lus Interface/Protocol | RS485, Ethernet/Modbus RTU, Modbus TCP | |
Khoom nta
1. 250KW PCS nrog kev ua haujlwm siab.
2. Them los ntawm cov hnub ci vaj huam sib luag lossis kab sib chaws.
3. Ib-nres tus me nyuam, yooj yim rau installation.
4. Kev sib txuas lus sib txuas: RS485, Ethernet/Modbus RTU, Modbus TCP.
High degree ntawm modularity, qauv yooj yim, yooj yim rau nruab thiab tswj; Kev koom ua ke ntawm nws tus kheej tsim BMS cov khoom lag luam rau kev saib xyuas thiab kev tswj hwm tiag tiag.
Daim ntawv pov thawj
Hais txog peb
FAQ
Q: Thaum twg kuv tuaj yeem cia siab tias yuav tau txais cov lus hais?
A: Peb feem ntau teb cov lus nug nrog cov lus hais hauv 24 teev. Yog tias koj xav tau cov lus teb sai dua, thov qhia rau peb paub thiab peb yuav ua qhov tseem ceeb rau koj qhov kev thov.
Q: Puas yog nws tuaj yeem siv lwm lub AC adapter, lossis tsis muaj npe AC adapter, los them lub hwj chim chaw nres tsheb?
A: Koj tuaj yeem tiv tauj peb kom paub seb qhov sib txawv AC adapter tuaj yeem siv los them koj qhov chaw nres tsheb fais fab. Peb xav kom koj muab koj tus lej xaj thiab cov ntaub ntawv qauv rau peb rau kev pab ntxiv.
Q: Peb tuaj yeem tau txais cov ntaub ntawv ntawm cov khoom nyob qhov twg?
A: Yog xav paub ntxiv txog peb, thov mus saib BLOO POWER lub vev xaib
