50KWh HV Muaj Roj Teeb Cia System Rack Tsim
2. Sab hauv BMS muaj ntau yam kev tiv thaiv
Ua kom lub zog tauj dua tshiab nrog cov roj teeb lub zog khaws cia, tsis muaj qhov xau, tsis muaj tawg, tsis muaj kev saib xyuas, peb Bloo Power BESS roj teeb lub zog cia siv ntau - theem kev tswj hwm kev siv hluav taws xob, max qhov kev ua tau zoo mus rau qib loj.
Nws tuaj yeem hloov kho rau 3U, nrog qhov siab tsawg dua kom txuag tau ntau qhov chaw thaum nruab ua ke. Qhov no 50KWh khib- mounted roj teeb nta siab heev lithium hlau phosphate roj teeb hlwb, koom ua ke nrog lub roj teeb tswj system kom paub tseeb tias kev nyab xeeb thaum thauj thiab ua haujlwm
.
Parameter
|
TSIS MUAJ |
Qauv No. |
BP -HP-50KWH |
BP -HP-100KWH | BP -HP-150KWH | BP-HP-200KWH | |||
|
1 |
Rated Voltage |
256V |
358.4V | 512V | 716.8V | |||
|
3 |
Rated Peev Xwm |
200 Aw |
280 Aw | 300 Aw | 280 Aw | |||
|
4 |
Rated Zog |
51.2 kWh os |
100.3 KWh | PEB 153.6 KWh | PEB 200.7 KWh | |||
| 5 | Voltage Ntau | 200V-292V | 280V-408.8V | 400V-574V | 627.2V-817.6V | |||
|
6 |
Lub voj voog (80% DOD) |
8000 cycles |
8000 cycles | 8000 cycles | 8000 cycles | |||
|
7 |
Qhov tob ntawm kev tso tawm |
80% |
80% | 80% | 80% | |||
|
8 |
Charge tam sim no |
40A |
40A | 40A | 40A | |||
|
9 |
Tshem tawm tam sim no |
40A | 40A | 40A | 40A | |||
|
10 |
Maximum Continuous Charge Current |
160A |
160A | 160A | 160A | |||
|
11 |
Maximum Continuous Discharge Current |
200A |
200A | 200A | 200A | |||
|
12 |
Kev ua haujlwm kub |
Them nqi: 0℃~ 55 degree, Tawm: -10 ~ 55 degree |
||||||
| 13 | Zaub | LCD | ||||||
| 14 | Hom Cell | LiFePo4 Lithium Ion Phosphate Roj teeb | ||||||
| 15 | Kev sib txuas lus | RS485/CAN/RS232 | ||||||
| 16 | Kev sib haum xeeb | Tau tshaj nrog rau feem ntau ntawm cov muaj tawm -gird/hybird inverters thiab them controllers | ||||||
| 17 | BMS | Intelligent roj teeb tswj system | ||||||
Khoom nta
1. Txhua yam khoom siv nrog LCD rau lub sijhawm tiag tiag - lub sijhawm roj teeb.
2. tuaj yeem kho koj lub logo, qhov hluav taws xob thiab muaj peev xwm.
3. Hnub ci zog cia txo cov pa roj carbon hneev taw.
4. Ua kom muaj zog ntsuab.
Dab tsi yog Cov Ntsiab Lus Qhia Tshwj Xeeb ntawm 50KWh HV Industrial Battery Storage System Rack Design?
Nyob rau hauv cov toj roob hauv pes evolving ntawm kev lag luam thiab muaj zog cia, 50KWh HV Industrial Battery Storage System Rack Design stands as a compact, high -efficiency solution for peak shaving, backup power, and renewable integration. High-voltage (HV) configurations- feem ntau ua haujlwm ntawm 400–800V DC- txo qis cable thiab ua kom yooj yim rau kev koom ua ke nrog cov khoom siv hluav taws xob uas twb muaj lawm.

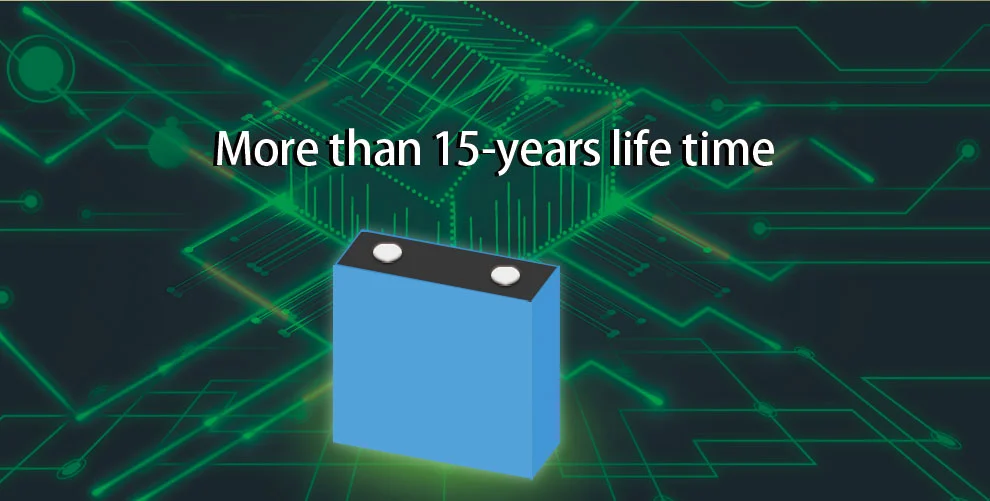

Ib tug raug 50KWh HV Industrial Battery Storage System Rack Design ntiav Lithium Iron Phosphate (LFP) prismatic hlwb teem nyob rau hauv modular racks nyob rau hauv ib lub txee los yog qhib -frame enclosure. Nominal voltage ranges ntawm 409.6V mus rau 716.8V, nrog tas zog tso zis ntawm 50 kW (1C tus nqi) thiab usable zog ntawm kwv yees li 47.5 kWh ntawm 95% qhov tob ntawm paug (DoD). Lub neej voj voog ntau dua 8,000 lub voj voog ntawm 80% DoD thiab 25 degree, nrog rau lub neej ntawm 10-15 xyoo. Round-kev ua haujlwm tau zoo nce mus txog 95–98%, txhawb nqa los ntawm kev tswj hwm thermal thiab kev tswj hwm roj teeb qib siab (BMS).
Tuam txhab Advantage
BLOO POWER yog cov chaw tsim khoom nyob hauv Shenzhen. Peb muaj 16 xyoo ntawm kev nplua nuj thiab yog cov paub tab hauv kev tsim khoom, thev naus laus zis thiab kev tswj hwm tus nqi.
1. Cov chaw tsim khoom siab tshaj plaws: BLOO POWER tau nqis peev hauv cov chaw tsim khoom siab heev txhawm rau siv kev txiav- thev naus laus zis thiab cov txheej txheem los tsim cov khoom zoo lithium roj teeb zoo.
2. Cov thev naus laus zis tshiab: BLOO POWER yog siv cov kev nce qib tshiab hauv cov cuab yeej siv roj teeb los txhim kho kev ua haujlwm, kev nyab xeeb, thiab kev ua haujlwm ntawm lawv cov khoom.
3. High-cov khoom siv roj teeb zoo: BLOO POWER tsom rau kev tsim cov qib siab-lithium roj teeb zoo, modules, thiab pob khoom. Peb tau koom tes nrog cov neeg muag khoom sab saum toj. Zoo li CATL / BYD / EVE / GOTION rau ntawm tes, thiab PACE rau BMS.
4. Ua kom tiav cov khoom lag luam: suav nrog cov khoom siv hluav taws xob hauv tsev, C&I lub zog khaws cia, 12V / 24V lithium-ion roj teeb pob, chaw nres tsheb fais fab, lub tsev txhab nyiaj fais fab, txhuas- roj teeb acid, hnub ci txoj kev teeb thiab lwm yam khoom siv hnub ci.
5. Tus kws tshaj lij: peb lub tuam txhab tau nruab nrog 10 tus kws tshaj lij uas tuaj yeem txhawb nqa cov neeg siv khoom nrog txhua yam ntawm cov lus nug, thiab ua kom muaj kev daws teeb meem zoo dua rau cov haujlwm tsim kho.
6. Ntau lawm muaj peev xwm: nrog ib tug 15000㎡ ntau lawm puag, peb tsim 200MWh ib lub hlis, thiab 2GWh ib xyoo, ntsib ntau ntau thiab tsawg ntawm tej yaam num.
7. Peb tuaj yeem khaws cov kev hloov pauv ntawm kev lag luam raws li cov lus pom zoo ntawm peb cov neeg siv khoom, Txog tam sim no, Peb tau pab ntau tshaj 80,000 cov neeg siv khoom thoob ntiaj teb.
Nws yog qhov hnyav dua thiab compact dua phab ntsa-mounted, thiab peb txhawb nqa ua 4U lossis 3U tsim rau qhov siab sib txawv. Nws tuaj yeem racked, ntsia hauv lub txee, lossis tsuas yog tso ncaj qha raws li koj xav tau
Khoom tsim nyog
Tau tshaj Inverters
Ntim
Hais txog peb
FAQ
Q: Koj puas tsim cov roj teeb lithium?
A: Yog, peb lub Hoobkas tshwj xeeb hauv kev tsim cov roj teeb lithium thiab tau ua rau ntau tshaj 10 xyoo.
Q: Puas muaj qhov kev txiav txim yam tsawg kawg nkaus kom muaj nuj nqis?
A: Tsis muaj kev txiav txim ib qho thiab peb tuaj yeem muag.
Q: Puas muaj kev txo nqi rau kev txiav txim loj?
A: Peb muab cov luv nqi sib txawv raws li qhov loj thiab qhov ntawm koj qhov kev txiav txim.
